Product Details:
Payment & Shipping Terms:
|
| Product Name: | Automatic Volume Quantitative Bag Packaging Equipment | Model: | DX-K420/K520 |
|---|---|---|---|
| Bag-making Size: | Different | Packing Speed: | Different |
| Compressed Air Consumption: | Different | Voltage: | 380/220V |
| High Light: | vertical bagging machine,automatic liquid packaging machine |
||
Product Name

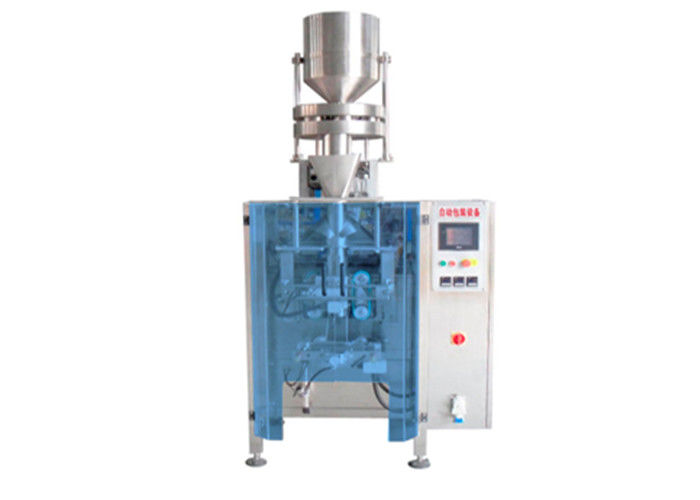

Vertical packaging machine series Automatic volume quantitative bag packaging equipment
Main performance and functional characteristics
I. Application:
This machine can do the work of bag-making, weighting, filling, filling the nitrogen, date coding, and bag-cutting. It is suitable for packing power and granule material such as milk tea, monosodium glutamate, solid beverage, sugar, grape sugar, coffee, feedstuff, solid medicine, powder type additive, and dye, etc.
II. Main performance and functional characteristics:
1. Equipped with safety protection, comply with firm’s safety management requirements.
2. Use intelligent temperature controller to have accurate temperature, which ensures the artistic and neat seal.
3. Use PLC Servo System and pneumatic control system and super touch screen to compose the drive control center,which maximize the whole machine’s control precision ,reliability and intelligentized level.
4 Touch screen can store the technical parameters of various kinds of products ,it is unnecessary to reset while products changing.
5. With error indicating system , which help to handle the trouble immediately.
6. Make pillow bags and hanging bags in terms of customers’ different requirements.
Technical Parameter :
| Model | KL-K420 | KL-K520 |
| Measure method |
Automatic Volumetric Cup Dosing Machine |
Automatic Volumetric Cup Dosing Machine |
| Bag-making size | (W)80-200mm (L)100-300mm | (W)100-250mm (L)100-350mm |
| Filling weight | 10-5000g With the change of different die attachment | 10-5000g With the change of different die attachment |
| Packaging precision | ≤1% | |
| Packaging speed | 25-60bag /min Depending on the product characteristics | |
| Power supply | Three phase 380/220V 50-60 Hz | |
| Power | 6 kw | |
| Pressure | 6-8 kg/c㎡ | |
| Use tolerance | 0.2m3/min | |
| Weight | 700kg | 950Kg |
| Dimension | 1300×1500×2600mm | |
Pre-sale:
Receive your call for the organization of technical seminars to discuss customer equipment requirements. Provide you with a detailed " proposal", including 1, a sample of equipment; 2. The latest technology of related equipment at home and abroad, comparison of the advantages and disadvantages of related manufacturers' products; 3, GMP process design, plant layout diagram of water and electricity; 4, mechanical equipment Process design; 5, related product configuration, spare parts, packaging and after-sales service; 6, determine the equipment and sub-item quotation.
Selling:
1, keep in touch with you, invite customers to visit the company, supervise production and assembly.
2. Prepare equipment specifications, file cards and tracking cards and other related software and accept your acceptance at any time.
3. Regularly report the progress of production to the customer.
After sales: (according to the international standard after-sales service standard operation)
• One-year warranty, life-long service, 24-hour after-sales service website, hotline and fax for your customers, domestic customers basically reach the designated location within 72 hours.
• Spare parts inventory is available for a long time, vulnerable, consumables and important accessories, to ensure that customers respond to the first time.
• Make regular visits to each customer once a year and record equipment records.
