Full Automatic Vertical Packaging Machine Frequency Control For Paste Products

Full Automatic Vertical Packaging Machine Frequency Control For Paste Products
Full Automatic Vertical Packaging Machine Frequency Control For Paste Products

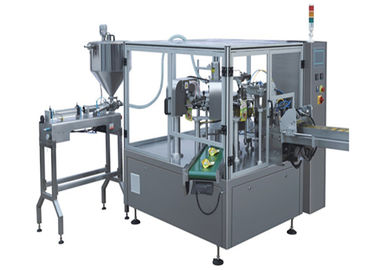

Large Image :  Full Automatic Vertical Packaging Machine Frequency Control For Paste Products

Product Details:
Place of Origin: China
Brand Name: TANGREN
Certification: ISO,SGS
Model Number: DX
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Delivery Time: 30 working days
Payment Terms: 10 per month
Detailed Product Description
Product Name: Full Automatic Liquid / Bag Packaging Equipment Quantitative Paste Products Model: DX
Speed: 20-50bags/min Power: 3kw
Dimension: 2250 × 1500 × 1500mm Voltage: 380V
High Light:

vertical bagging machine


automatic liquid packaging machine

Product Name

Vertical packaging machine seriesFull automatic liquid / bag packaging equipment quantitative paste products




Main performance and functional characteristics

This device consists of a bag automatic packaging machines and liquid filling machine supporting body butter is made. Mainly applies to: detergents, yellow sprinkles, soy sauce, vinegar, juice, beverage, pot bottom material, ketchup, peanut butter, jam, chili sauce, bean paste and other materials, automatic weighing and packing.
Main features:
1 with Germany's Siemens PLC control with touch screen control system, easy to operate.
(2) frequency control, frequency control devices used with this unit, within the provisions of the speed can be adjusted.
3 automatic detection function, if not open the bag or open bags incomplete, no feeding, no sealing, the bag can be used again, do not waste materials, saving production costs.
4 safety device, when the working pressure is not normal or heating pipe failure, it will alarm.
5 quick-change bag size, robotic device width can be adjusted quickly and easily.
6 random with plexiglass security door, when the door is opened the machine immediately stops running, play a protective role of the operator.
7 adopts imported plastic bearings, without refueling, reduce the material contamination;
8 oil-free vacuum pump, to avoid contamination of the production environment.
9. Packing materials loss low, what this machine is preformed bag, packaging bag pattern perfect sealing quality, resulting in improved product quality.
10 meet the food processing industry hygiene standards, machines and materials or bags made of stainless steel parts in contact with food hygiene requirements or other material processing, to ensure food hygiene and safety.
11 wide range of packaging, by selecting the different measurement devices, can be applied in a liquid, paste, granule, powder, irregular lumps and other packaging materials.
12 with liquid mixing device to prevent precipitation of micro-particulate materials, with level control devices.

Technical parameters:

Bag Dimensions W :80-200mm L: 100 ~ 300mm
Packing speed


(specific speed is determined by the material itself and the fill weight determined)

Packing Accuracy ≤ ± 1%
Power supply three-phase 380V, 50/60Hz
Total power 3KW
Compressed air consumption 0.6m3/min (by the user)
Dimensions 2250 × 1500 × 1500mm





About us:

Shanghai Duxia Industry & Trade Co., Ltd. is specialized in developing and manufacturing various whole set of packaging production systems and import & export trade. Based on enormous technology skills, we follow market demand as our guide, production development as our responsibility, we can design the best economical reasonable solution program.









Advanced design and professional technology, precise manufacturing is our remarkable characteristics. Our company already pass quality management system, established integrity Quality Guarantee System, to insure the quality and performance of our products.

Our company devote to digesting and absorbing international advanced science of processing and automatic equipment. We have cooperated with company in Canada, Italy, Switzerland for long time. We have developed various advanced filling, packaging and conveying equipments and we have reached to professional level. Our automatic production system is widely used in food, beverage, dairy products, canned products, cosmetic, lube, medicine, chemistry, etc.
