Product Details:
Payment & Shipping Terms:
|
| Product Name: | Automatic Vertical Bag Packaging Equipment Technology Parameter Table | Model: | KL-420/520/620/720/820/1020 |
|---|---|---|---|
| Bag-making Size: | Different | Packing Speed: | Different |
| Compressed Air Consumption: | Different | Voltage: | 220V, 50-60Hz |
| High Light: | vertical bagging machine,vertical wrapping machine |
||

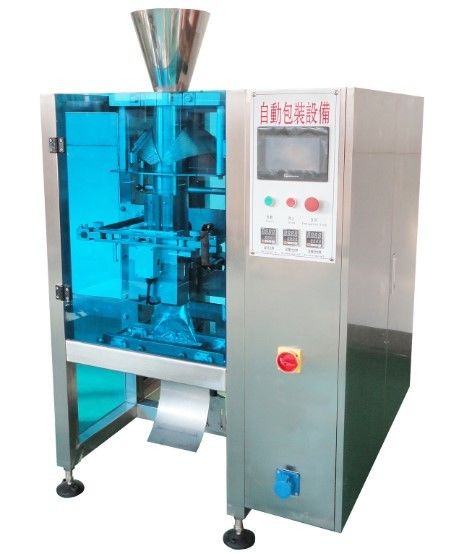

Product Name
Automatic vertical bag packaging equipment technology parameter table
Main performance and functional characteristics
1. Equipped with safety protection, comply with firm’s safety management requirements.
2. Use intelligent temperature controller to have accurate temperature, which ensures the artistic and neat seal.
3. Use PLC Servo System and pneumatic control system and super touch screen to compose the drive control center,which maximize the whole machine’s control precision ,reliability and intelligentized level.
4. This machine completes automatically the whole packing procedure of loading materials, measuring, bag making, sealing, date printing, air charging ( or exhausting) and finish products transporting as well as counting.
5. Touch screen can store the technical parameters of various kinds of products ,it is unnecessary to reset while products changing.
6. With error indicating system , which help to handle the trouble immediately.
7. Make pillow bags and hanging bags in terms of customers’ different
Technical Parameter
| Model | KL-420 | KL-520 |
| Bag-making Size | (L)80-300mm, (W)80-200mm | (L)100-350mm, (W)100-250mm |
| Packing Speed | 25-75Bags/Min According to the measurement of machine speed decided | 25-65Bags/Min According to the measurement of machine speed decided |
| Power | 220V, 50-60Hz, 3.0 Kw | 220V, 50-60Hz, 3.6Kw |
| Compressed air consumption | 6-8 kg/m2 ~0.3 m3/min | 6-8 kg/m2, ~0.3 m3/min |
| Weight | 500 Kg | 700 kg |
| Size | 1450×1000×1400 (mm) | 1450×1100×1500 (mm) |
| Model | KL-620 | KL-720 |
| Bag-making Size | (L)100-400mm, (W)100-300mm | (L)100-450mm, (W)100-350mm |
| Packing Speed | 15-45Bags/Min According to the measurement of machine speed decided | 10-35Bags/Min According to the measurement of machine speed decided |
| Power | 220V, 50-60Hz, 3.0 Kw | 220V, 50-60Hz, 3.6Kw |
| Compressed air consumption | 6-8 kg/m2 ~0.3 m3/min | 6-8 kg/m2, ~0.3 m3/min |
| Weight | 500 Kg | 700 kg |
| Size | 1450×1200×1700 (mm) | 1450×1300×1700 (mm) |
| Model | KL-820 | KL-1020 |
| Bag-making Size | (L)100-500mm, (W)100-400mm | (L)100-550mm, (W)100-500mm |
| Packing Speed | 15-45Bags/Min According to the measurement of machine speed decided | 5-35Bags/Min According to the measurement of machine speed decided |
| Power | 220V, 50-60Hz, 3.0 Kw | 220V, 50-60Hz, 3.6Kw |
| Compressed air consumption | 6-8 kg/m2 ~0.3 m3/min | 6-8 kg/m2, ~0.3 m3/min |
| Weight | 500 Kg | 700 kg |
| Size | 1450×1200×1700 (mm) | 1450×1500×1900 (mm) |
FAQ
Q1: How to visit our Factory? (not a trade company)
A: Shanghai Airport→Pick you up
Q2: How does your factory do the quality control?
A: “QUALITY FIRST " We purchase qualified parts, test the machine every step when manufacturing. We have SGS certification and ISO certification.
Q3: How about the installation?
A: Option 1, our engineer install the machines for you, also train your staff until they can run the machine independently.
Option 2, you learn this in our factory.
Q4:Do you have after-sale service?
A: 1 Year Warranty and timeless maintenance service.
Q5: How about the payment term?
A: Payment term:1, T/T 30% , 70% before shipping.
Service:
One year warranty + lifetime maintenance + tailored + long-term tracking service is the principle of Shanghai Duxia Co., Ltd. .We’re equipped with a number of comprehensive technical and technical personnel on-site service for customers to solve technical problems. Our company provides a full range of installation and commissioning, maintenance, training, technical advice and other pre-sale and after-sale service. Advanced technology, reliable quality, reasonable prices and perfect after-sales service make you get the best products and services.
