Product Details:
Payment & Shipping Terms:
|
| Product Name: | DX-K150 Automatic High Speed Oral Liquid Filling Production Line | Voltage: | 380V |
|---|---|---|---|
| Material Type: | Liquid | Category: | Filling Machine |
| Capacity: | Customize | ||
| High Light: | automatic liquid filling machine,beverage filling machine |
||

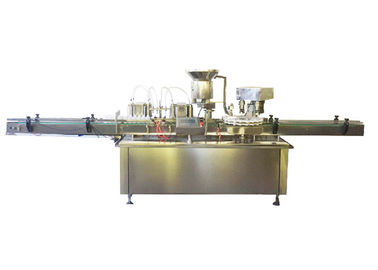

DX-DG8 Automatic Paste Jam Filling and Capping Machine
Application:
This machine is mainly used for syrup, honey, juice, wine, drinksbeverage, soybean sauce, vinegar, cod-liver oil, olive oil, essential oil, hair oil, ink, disinfectant, injection, laundry detergent and various medical liquid filling and capping.
Performance feature:
1. Machine usesAdopts plunger type metering pump filling, high precision; The structure of pump adopts fast
disassembledy institutionsmechanism, easy to clean and disinfect.
2. PLC control system, color touch screen display, machine has function of counting automatically.
3. The filling nozzle was equipped with drip-proof device.
4. Dual tracks entering bottles, when filling liquid, the filling nozzles dive into the bottom of bottles, rising slowly, it can effectively prevent bubbles.
5. Main electrical elements adopts foreign well-known brands.
6. Machine shell is made of 304 stainless steel, meetsfull compliance with GMP standards.
Technical parameter:
| Model | YB-YG8 |
| Filing head number | 8 |
| Capping head number | 2 |
| Filling volume | 50-500ml |
| Capacity | 80-120 bottles/min |
| Filling accuracy | ≤ ±1% |
| Pass rate | ≥ 98% |
| Power supply | 1 Ph. AC220V, 50/60Hz |
| Total power | 1.8 KW |
| Net weight | 700kg |
| Overall dimension | L2400 × W1350 × H1650mm |
