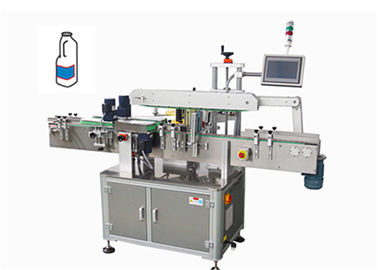

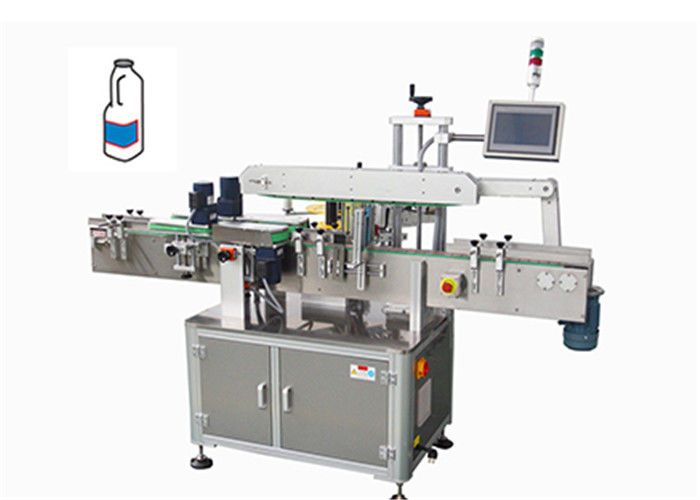

One Side Industrial Automatic Labeling Machine For Square Food Oil Bottles

Product Name
Automatic One Side Labeling Machine For Square Bottle Food Oil Bottles


Description

Basic purpose:
For the food, cosmetics, health products, edible oil, daily necessities and other industries square, square and other square bottles of multi-label vertical multi-sided labeling

Features:
The overall material for the preparation of stainless steel and aluminum alloy, the design is stable and easy operation, elegant layout;
Using world-renowned electrical components, quality and stability;
Transparent label stickers are not blistering, sticker no folds;
The entire bottle of institutions using synchronous double-stranded correction, stability and precision;
Pressure bottle mechanism using a special flexible pressure device and well-known servo motor to ensure that the product is running neutral;
Universal standard station angle adjustment agencies, a wide range of regulation, can realize the taper bottle, multi-faceted bottles and other labeling
Can be single-sided, two-sided, three-sided, four or five sided labeling requirements;

operating system:
Multi-functional man-machine interface, production count, parameter adjustment and other visual monitoring, with rich help function and fault display;
50 sets of labeling parameters can be preset, no need to re-set the bottle change;
Automatic detection of label length and other functions;

Optional:
Optional hot stamping machine or Pen Maji flexible configuration;
Dedicated sensor for transparent and opaque labels;
Can increase the organization to realize labeling of round bottle;

Specifications

Model                                                                      PLM
Production (pieces / minute)              50-200 pieces / minute (with material and label size)
Labeling accuracy                                              ± 1.0 mm
Label type                                            sticker, transparent or opaque
The inner diameter of the label                            76 mm
Label outside diameter                                    350 mm (max)
Label size                                     length  10-250mm, height 10-300mm
Labeling object size diameter                            width 20-90mm
Working pressure                                                 0.6Mpa
Power                                                  220VAC ± 10% 50Hz, 1.6Kw
Suitable ambient temperature     5-40 ℃, humidity 15-85% (non-condensing)
Weight (kg)                                                           450kg
Machine size                                        2300 (L) 1300 (W) 1500 (H) mm

Q&A

Q1: How to visit our Factory? (not a trade company)

A: Shanghai Airport→Pick you up

Q2: How does your factory do the quality control?

A: “QUALITY FIRST " We purchase qualified parts, test the machine every step when manufacturing. We have SGS certification and ISO certification.

Q3: How about the installation?

A: Option 1, our engineer install the machines for you, also train your staff until they can run the machine independently.

Option 2, you learn this in our factory.

Q4: Do you have after-sale service?

A: 1 Year Warranty and timeless maintenance service.

Q5: How about the payment term?

A: Payment term:1, T/T 30% , 70% before shipping.
