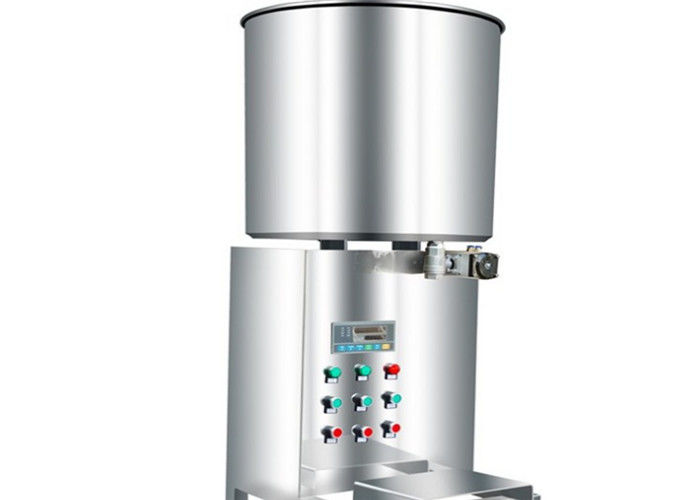

Liquid Quantitative Semi Auto Filling Machine Medium Speed High Accuracy

Liquid Quantitative Semi Auto Filling Machine Medium Speed High Accuracy
Liquid Quantitative Semi Auto Filling Machine Medium Speed High Accuracy

Large Image :  Liquid Quantitative Semi Auto Filling Machine Medium Speed High Accuracy

Product Details:
Place of Origin: China
Brand Name: TANGREN
Certification: ISO,SGS
Model Number: DX
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Delivery Time: 30 working days
Supply Ability: 10 per month
Detailed Product Description
Product Name: Liquid Quantitative Filling Machine Semi Auto Filling Machine Voltage: 380V
Material Type: Liquid Dimension: 720*500*1400mm
Category: Filling Machine Power: 3kw
High Light:

semi automatic filling machine


semi auto liquid filling machine


Product Name

Liquid quantitative filling machine Semi Auto Filling Machine



The basic configuration consists of silo and quantitative weighing control mechanism. It takes advantage of the fact that the weigh-less weight control mechanism does not have the material blanking impact to make the quantitative filling, which makes the filling accuracy more accurate. As the material leaves the filling port, the weight will be counted, so you can catch the bags directly when filling. This is a great convenience for filling operations in low-dose (eg 100g-5kg) bags. Avoid the bag - folder bag - filling - bag tedious operation. For small doses, soft bag packaging is particularly convenient.
1, the scope of application
1.1 Material: Liquid (here refers to: through the filling port at a customer acceptable rate of natural material flow) of the quantitative filling. Such as: latex paint, interface agent, waterproof material, waterproofing agent, soy sauce, vinegar and so on.
1.2 Package: soft and hard packaging can be.
1.3 Filling mouth default size: 1 inch (25.4mm) pneumatic ball valve.
2, the main structure and size
2.1 The main structure
2.1 Silo volume: 150L
2.2 automatic quantitative control mechanism
2.3 Options: feeding agencies
Generally take a liquid pump, such as: gear pump (gear meshing friction occurs, the individual material will occur agglomeration particles), screw pumps, diaphragm pumps.
2.2 overall size (length X width X height): about 720X500X1400mm.
3, the main performance
3.1 (default) filling error is less than or equal to 10 grams.
3.2 Filling range of 50 grams -30kg, customers are free to set.
3.3 with automatic error correction function.
3.4 with filling drop (advance) automatic calculation, automatic modification of functions.
3.5 can design fast, medium speed, slow speed accuracy control function.
3.6 has a different filling weight parameter storage function, press the button to select.
3.7 with mechanical vibration, electromagnetic interference filtering.
3.8 has the highest, lowest level control, can automatically feed silos.
3.9 Control unit with feed mechanism (eg pump, screw) (three terminals correspond to the three terminals of the three-phase AC motor).
3.10 Weighing control mode: Weighing weight control
3.11 leakage, over-current protection.
3.12 Power-off self-locking function to prevent power failure After the shutdown, a sudden call caused the device to automatically start.
4, material: In addition to individual control components, the rest are 304 stainless steel.

Liquid Quantitative Semi Auto Filling Machine Medium Speed High Accuracy 0Liquid Quantitative Semi Auto Filling Machine Medium Speed High Accuracy 1







Q1: How to visit our Factory? (not a trade company)

A: Shanghai Airport→Pick you up

Q2: How does your factory do the quality control?

A: “QUALITY FIRST " We purchase qualified parts, test the machine every step when manufacturing. We have SGS certification and ISO certification.

Q3: How about the installation?

A: Option 1, our engineer install the machines for you, also train your staff until they can run the machine independently.

Option 2, you learn this in our factory.

Q4: Do you have after-sale service?

A: 1 Year Warranty and timeless maintenance service.

Q5: How about the payment term?

A: Payment term:1, T/T 30% , 70% before shipping.




One year warranty + lifetime maintenance + tailored + long-term tracking service is the principle of Shanghai Duxia Co., Ltd. .We’re equipped with a number of comprehensive technical and technical personnel on-site service for customers to solve technical problems. Our company provides a full range of installation and commissioning, maintenance, training, technical advice and other pre-sale and after-sale service. Advanced technology, reliable quality, reasonable prices and perfect after-sales service make you get the best products and services.
