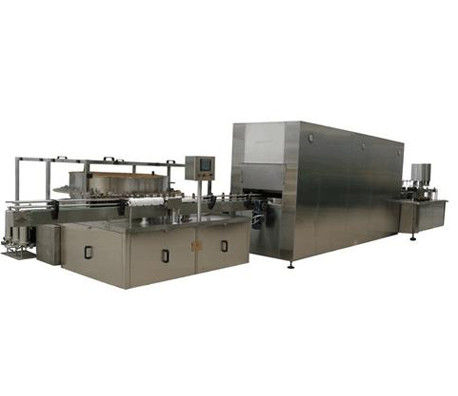

DX-K150 Automatic High Speed Oral Liquid Filling Production Line
Performance feature:
1. This production line consists of vertical (ultrasonic) washing machine, hot air circulation drying oven, connecting nmesh et belt, high-speed filling and capping machine and other equipments.
2. It’s suitable for round or shoulder pad shaped glass filling and production. Working processflow: ultrasonic cleaning, water vapor flush inside and shower outside, dry sterilizing, cooling, filling and capping, and other processes. etc.
3. This machine is successfully produced and developed, based on the actual situation of Chinese pharmaceutical industry, which meets “GMP” requirements. With advantages as stable production, high pass rate, easy operation and maintenance, low running costs and so on, machine is suitable for oral production of glass bottlesthe production of glass bottles for oral agents.
4. PLC control system, color touch screen display, photoelectric sensors can prevent from squeezing and breaking bottles.
Technical parameters:
| Model | DX-K150 |
| Capacity | 150-300 bottles/min |
| Applicable specification | 30-150ml |
| Passing rate | ≥99% |
| Power supply | 3ph. 380V, 50/60Hz |
| Total power | 50 KW |
| Net weight | 2800kg |
| Overall Dimension | L12000 x W3000 x H2500mm |
Shipping:
Q&A
Q1: How to visit our Factory? (not a trade company)
A: Shanghai Airport→Pick you up
Q2: How does your factory do the quality control?
A: “QUALITY FIRST " We purchase qualified parts, test the machine every step when manufacturing. We have SGS certification and ISO certification.
Q3: How about the installation?
A: Option 1, our engineer install the machines for you, also train your staff until they can run the machine independently.
Option 2, you learn this in our factory.
Q4:Do you have after-sale service?
A: 1 Year Warranty and timeless maintenance service.
Q5: How about the payment term?
A: Payment term:1, T/T 30% , 70% before shipping.
