Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Speed Labeler | Catagory: | Labeling Machine |
|---|---|---|---|
| Usage: | Cosmetic/personal Care, Household Chemical, Food&beverage, Nutraceuticals, Phamaceuticals | Capacity: | 100-350 Bottles/minutes |
| Label Size: | Length 50mm~180mm Width 50mm~80mm | Bottle Size: | Round Shape |
| Highlight: | industrial labeling machine,horizontal labeling machine |
||
Product Name

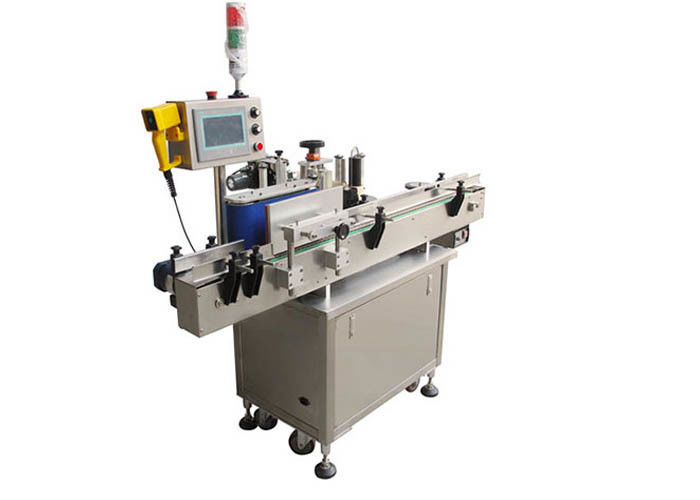

High Speed Automatic Labeling Machine Wrap Around Glass Bottle Plastic Bottle
HTB-400 is economical,self contained,easy to operate,equipped with auto teach programming touch screen.The machine adopts high speed labeling device and speed up to 350 CPM.Built in microchip storing different job setting makes fast and easy changeover.This automatic labeling system is ideal for all sorts of cylindrical container.(Bottle size could be customized)
Key Features:
Specifications:
| Labeling speed | 100-350 bottles/minutes |
| Bottle Size | Round shape |
| Size of label | Length 50mm~180mm Width 50mm~80mm |
| Dimensions | 1600mm×950mm×1160 mm ( Length × Width × Height ) |
| Weight | 500KG |
| Electrical Reqiurements-Power | 1000W,Voltage:220v,Frequency:50-60HZ(Optional) |
| working direction | Left → Right (or Right → Left) |
Industry Type(s)
Working Process
Screw bottle unscramble——spray paste——take label——stick label——label sticking
Features
The machine adopt screw bottle feeding method, operation is stable.
Photoelectric detection bottle, no bottle, no labeling.
The machine design simple, it can change label sizes.
Easy to operate, maintain.
Main Technical Parameter
| Capacity | 80-180b/min |
| Bottle diameter range | 45-75mm |
| Label size | H:40-80mm L:110-220mm |
| Voltage | 380V, 50HZ |
| Power | 1.5kw |
| Compressing air | 4-6kgs*18L |
| Machine weight | 500kg |
Product name
Wet Glue Labeling Machine High Speed square bottle flat bottle stability
Warranty:
One year warranty + lifetime maintenance + tailored + long-term tracking service is the principle of Shanghai Duxia Co., Ltd. .We’re equipped with a number of comprehensive technical and technical personnel on-site service for customers to solve technical problems. Our company provides a full range of installation and commissioning, maintenance, training, technical advice and other pre-sale and after-sale service. Advanced technology, reliable quality, reasonable prices and perfect after-sales service make you get the best products and services.
