0.55kw Siphon Filling Machine , Quantitative Semi Auto Liquid Filling Machine

0.55kw Siphon Filling Machine , Quantitative Semi Auto Liquid Filling Machine
0.55kw Siphon Filling Machine , Quantitative Semi Auto Liquid Filling Machine

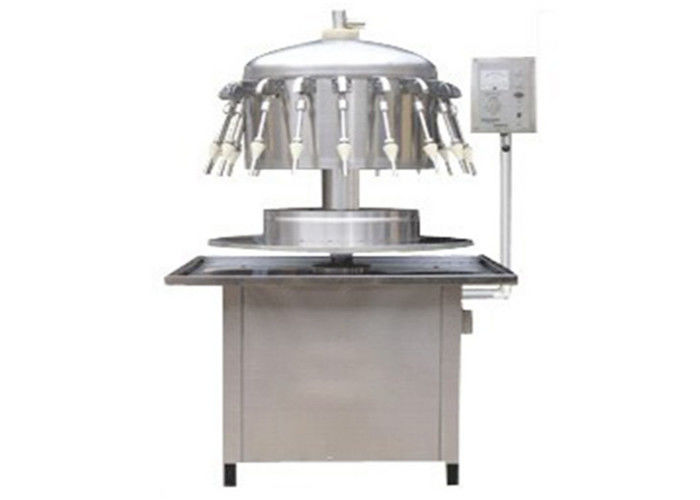

Large Image :  0.55kw Siphon Filling Machine , Quantitative Semi Auto Liquid Filling Machine

Product Details:
Place of Origin: China
Brand Name: TANGREN
Certification: ISO,SGS
Model Number: DX
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Delivery Time: 30 working days
Supply Ability: 10 per month
Detailed Product Description
Product Name: Siphon Filling Machine Semi Auto Filling Machine Liquid Voltage: 380V
Material Type: Liquid Speed: 16-50bottles/min
Category: Filling Machine Power: 0.55kw
High Light:

semi automatic filling machine


semi auto liquid filling machine


Product Name

Siphon filling machine Semi Auto Filling Machine liquid




1, The machine can be applied to a variety of bottles of liquid quantitative filling (including all kinds of special-shaped bottles), especially the same specifications of the bottles in a bottle height error within 20mm, no shunting, can be filled at the same time.
2, can be used for various types of carbon dioxide-free wine, vinegar, soy sauce, liquid drugs and other bottling of various liquids.
3, the aircraft small size, light weight, compact structure, long life, easy maintenance and easy operation, and the electric power is small, power consumption, low prices.
4, The principle of quantitative control Constant speed, equal division, constant pressure principle, simple adjustment, accurate adjustment of quantitative accuracy, easy to grasp, reliable, quantitative and accurate.
5, the machine may contact with the liquid parts are made of high quality stainless steel, to ensure that the liquid from pollution, other exposed parts are used paint, corrosion-resistant machine looks beautiful and generous, to meet the food machinery "aesthetic health" requirements.
6, bottle size adjustment range, easy to adjust, the bottle height.

working principle:
The machine is based on the principle of R & D design, under the control of the filling valve, filling the liquid level remains unchanged. When the filling valve into the bottle is, the bottle top up to open the filling valve, filling valve filling suction hole is exposed, sealing gasket and bottle mouth seal tight, began to sob and establish a negative pressure. At this moment, the liquid in the liquid cylinder in the upper part of the filling machine starts to flow into the bottle under the effect of pressure difference. When the liquid level exceeds the suction hole of the filling valve filling pipe, the pressure difference disappears and the suction stops, and the filling ends .

Equipment technical parameters:
Production efficiency: 1000-3000 bottles / hour
Filling capacity: 50-1500ml
Filling the first few: 14-18 head
Motor power: 0.55kw




About us:

Shanghai Duxia Industry & Trade Co., Ltd. is specialized in developing and manufacturing various whole set of packaging production systems and import & export trade. Based on enormous technology skills, we follow market demand as our guide, production development as our responsibility, we can design the best economical reasonable solution program.





Advanced design and professional technology, precise manufacturing is our remarkable characteristics. Our company already pass quality management system, established integrity Quality Guarantee System, to insure the quality and performance of our products.

Our company devote to digesting and absorbing international advanced science of processing and automatic equipment. We have cooperated with company in Canada, Italy, Switzerland for long time. We have developed various advanced filling, packaging and conveying equipments and we have reached to professional level. Our automatic production system is widely used in food, beverage, dairy products, canned products, cosmetic, lube, medicine, chemistry, etc.
