|Product Name:||Sterilization For Canned Meat Production Line||Voltage:||380V|
meat canning machine,
meat filler machine

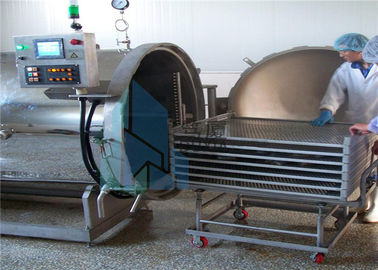

Sterilization for Canned Meat Production Line Stainless Steel basket PP layer 4-wheel trolley
|Inner diameter/length/capacity||800mm /1400mm/0.82m3|
|Design pressure||0.35 Mpa|
|Max working pressure||0.30 Mpa/|
|Max working temperature||145℃|
|Supply voltage||380 V(or customer’s requirement)/50HZ|
|Size of tray||700mm×500mm×500mm|
|Material of body||Sus304 stainless steel|
|Thickness of body||4mm|
|Water quality required||
Cooling water: pipe water, chloride ion content are not allowed to exceed 25mg/L
Processing water: soft water hardness≤0.003mmolI/L
Consumption (processing temperature 121centi degree. holding time 20 minutes, cooling time 15minutes)
|Soft water for sterilization||82L|
Loading 2min＋raising temp 10min＋holding time 20min＋cooling 15min＋discharge 2min
|Power||>3kw/380V/50(design as client request)|
|Water quality required||Processing water: soft water hardness≤0.003mmolI/L|
|Air compressor||air output: 0.3m3/min; pressure: 10kg|
|Cooling water tank||2m3|
|Soften water system||500L/H|
|(Hot filling :Production temperature before sterilization 70-80 degrees )|
|One batch for 320g can||2340 can|
|One batch for 350g can||1470 can|
One layer include about 13or 12 pieces of canned, there is 13 lines totally for the size:80*150mm
total is 7 layers.
*Note: Only is two baskets for your capacity, this picture only is loading reference.
We offer to you are perfectly suited for Sterilization – Pasteurization - Cooking of all types of products such as: Fruit and vegetables, raw or processed/Meat and meat based products/Raw milk and milk products/Fish and seafood/Ready meals/Baby food/Pet food, etc…
Packed in any type of container: cans, tins, aluminum, glass jars, plastic bottles, pouches, carton boxes, plastic trays, etc…
Special machine function:
l Automatic control by PLC computer/order input by touch screen easily.
l Record of temperature curve. And time curve.
l Electronic and mechanical interlocking safety system.
l Electronic and mechanical protection of over pressure.
l Electronic automatic protection of overheats.
l Temperature Abnormal Alarm
l Pressure Abnormal Alarm.
l Water level abnormal Alarm
l Operation Abnormal alarm
l Automatic PID temperature controller, temperature error within±0.5℃
l Temperature contrast in the autoclave (heat distribution):.5℃
l Electronic corrector of temperature contrast
l Gradual cooling.
l Efficientmaintenance-free heat ex-changer
l Processing water recycling system
l Suit for packages: soft package, (CPP+PAaluminum foil, air-packed)/glass bottle/tin plastic/aluminum tray)
l Processing with spray from side
l Raise and reduce temperature directly (selectable by user)
