|Product Name:||Large Filling Machine Semi Auto Filling Machine Liquid||Voltage:||380V|
semi automatic filling machine,
liquid paste filling machine

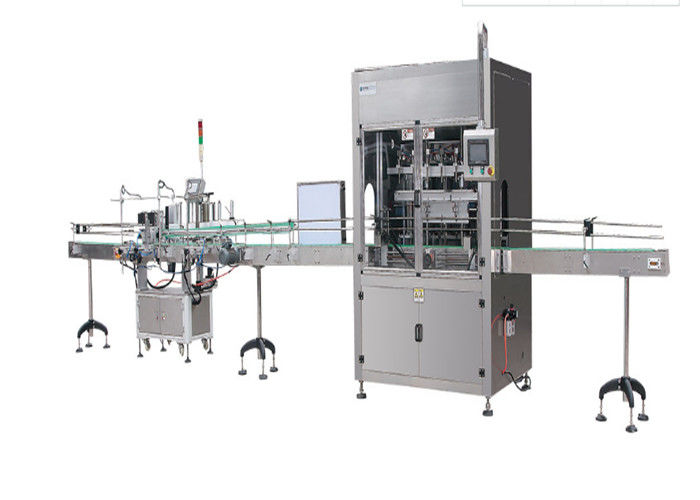

Large filling machine Semi Auto Filling Machine liquid
Automatic liquid filling equipment collect light, machine, electricity, gas in one, using piston quantitative principle, filling accuracy, simple operation, easy maintenance. Equipment main material: Made of SUS304 stainless steel, in line with health requirements. Filling process using acrylic transparent plate isolation with the outside world to ensure that the filling of health requirements. Filling with pressure filling, without the need to install high pot, simplifying the installation process and improve the filling efficiency. Can be widely used in liquid, food, cosmetic industry automation packaging products.
1, the device configuration 7-inch color touch screen, the normal operation on the touch screen, intuitive and easy; user-friendly parameter adjustment and testing of various functions.
2, Delta frequency control system, according to the production speed adjustable speed; (stainless steel conveyor, the length can be customized according to customer requirements)
3, contact with the material SUS304 stainless steel production, in line with food production requirements.
4, equipment rack with closed structure, safe operation, the use of health processes.
4, high-precision piston metering device, metering servo motor / cylinder drive, quantitative accurate and reliable;
5, the use of high-quality sealed components, plus effective anti-drip measures to ensure filling the scene does not drip;
6, equipment comes with storage tank, independent cleaning pipe, cleaning, changing the material convenient. (Box optional extra: frequency mixing, heating, insulation function)
7, Filling the head configuration Japan's Matsushita optoelectronic system, can accurately identify the filling bottle positioning status, to achieve a bottle filling, bottle-less bottles without filling.
8, adjustable speed bins stirring, easy to use different mixing speed to adapt to different filling materials.
1, filling range: 100-300g, 100-500g, 500-2500g (optional)
2, filling speed: 150-300 bottles / head
3, measurement accuracy: ± 4% g (200g time)
4, rated voltage: 3 phase 380v
5, rated power: normal work 3.2Kw, start the insulation function machine power: 8.9Kw
6, the circuit system: France Schneider + Taiwan's Delta
7, working pressure: 0.6 ~ 0.8Mpa
8, machine weight: about 750kg
9, bin capacity: 50 ~ 60L
10, filling the first number: 2-12 head (optional)
11, compatible bottle height range: 80-180mm
12, compatible bottle width or diameter range: 55-95mm or Φ55-Φ95mm
13, compatible with the smallest bottle diameter (diameter): Φ40mm (special diameter can be customized)
14, material supply methods: upgrade, screw or pump automatic feeding (optional function)
15, the largest filling material particles: 15X15X15mm
16, Dimensions: (H X W X D) 1250 × 1200 × 2200mm (lifting the feeding height of up to: 2350mm)
Receive your call for the organization of technical seminars to discuss customer equipment requirements. Provide you with a detailed " proposal", including 1, a sample of equipment; 2. The latest technology of related equipment at home and abroad, comparison of the advantages and disadvantages of related manufacturers' products; 3, GMP process design, plant layout diagram of water and electricity; 4, mechanical equipment Process design; 5, related product configuration, spare parts, packaging and after-sales service; 6, determine the equipment and sub-item quotation.
1, keep in touch with you, invite customers to visit the company, supervise production and assembly.
2. Prepare equipment specifications, file cards and tracking cards and other related software and accept your acceptance at any time.
3. Regularly report the progress of production to the customer.
After sales: (according to the international standard after-sales service standard operation)
• One-year warranty, life-long service, 24-hour after-sales service website, hotline and fax for your customers, domestic customers basically reach the designated location within 72 hours.
• Spare parts inventory is available for a long time, vulnerable, consumables and important accessories, to ensure that customers respond to the first time.
• Make regular visits to each customer once a year and record equipment records.
