|Product Name:||Vertical Packaging Machine Series Large Vertical Packaging Machine Line||Model:||DX-920W/1200W|
|Bag-making Size:||Different||Packing Speed:||Different|
|Compressed Air Consumption:||Different||Voltage:||220V|
vertical bagging machine,
vertical wrapping machine

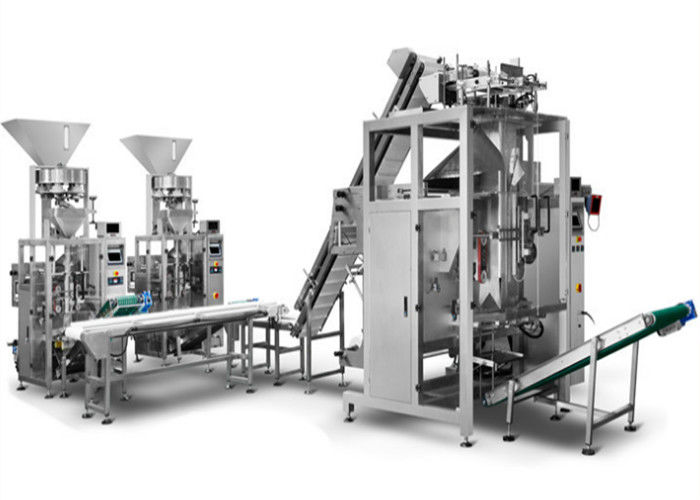

Vertical packaging machine series Large vertical packaging machine line
1, DX-920W / 1200W is a 1-25 kg large automatic weighing packaging line.
2, packaging speed: 5-30 packets / minute
3, filling range: 1-25 kg
4, filling accuracy: ≤ 0.5-2%
Scope of application:
Mainly used in sugar, rice, seeds, feed, hardware, charcoal, building materials, chemical products, such as automatic quantitative bag packaging.
1, using internationally renowned brand PLC, reliable performance, durability.
2, this mechanism bags, measurement, filling, sealing, coding, cutting bags, counting one-time completed.
3, servo motor synchronous wheel pull film, pull film resistance, bag beautiful, beautiful; belt is not easy to wear.
4, using the material on the folder, under the care device, effectively prevent the bag.
Model DX-920 DX-1200
Bag length 100-570mm 100-800mm
Bag width 180-450mm 200-580mm
Maximum film width 920mm 1200mm
Packaging speed 5-40 packets / minute 5-30 packets / minute
Air consumption 0.5 m 3 / min 1.0 Mpa 0.5 m3 / min 1.0 Mpa
voltage 6KW 220V 50 / 60HZ 6KW 220V 50 / 60HZ
Dimensions 1750 (L) * 1510 (W) * 2100 (H) (L) 2400 × (W) 1800 × (H) 2750 mm
Machine weight 1000KG 1200KG
Conveyor material Food Grade Polypropylene (PP)
Carriage material 304 stainless steel
transfer speed 30 m / min
Voltage 220V / 50 / 60Hz
product weight 80KG
Product Size (L) 1850 * (W) 550 * (H) 1230mm
Receive your call for the organization of technical seminars to discuss customer equipment requirements. Provide you with a detailed " proposal", including 1, a sample of equipment; 2. The latest technology of related equipment at home and abroad, comparison of the advantages and disadvantages of related manufacturers' products; 3, GMP process design, plant layout diagram of water and electricity; 4, mechanical equipment Process design; 5, related product configuration, spare parts, packaging and after-sales service; 6, determine the equipment and sub-item quotation.
1, keep in touch with you, invite customers to visit the company, supervise production and assembly.
2. Prepare equipment specifications, file cards and tracking cards and other related software and accept your acceptance at any time.
3. Regularly report the progress of production to the customer.
After sales: (according to the international standard after-sales service standard operation)
• One-year warranty, life-long service, 24-hour after-sales service website, hotline and fax for your customers, domestic customers basically reach the designated location within 72 hours.
• Spare parts inventory is available for a long time, vulnerable, consumables and important accessories, to ensure that customers respond to the first time.
• Make regular visits to each customer once a year and record equipment records.
