|Product Name:||To Bag Packaging Equipment Automatic Quantitative Powder Products||Model:||DX|
|Dimension:||4600 × 2000 × 2430mm||Voltage:||380V|
vertical bagging machine,
automatic liquid packaging machine
Vertical packaging machine seriesTo bag packaging equipment automatic quantitative powder products
Main performance and functional characteristics

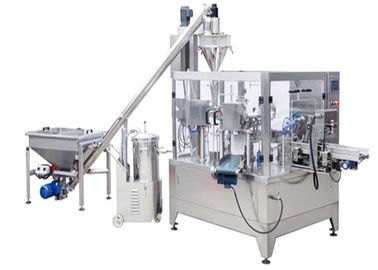

Mainly by its sets of equipment to the bag packing machine with screw scales, screw feeder, supporting special cleaner made for pesticides, veterinary drugs, milk powder, dextrose, coffee powder, spices, additives and other powder materials, automatic feeding can automatically take bag, play yards, open bags, quantitative measurement, cleaning, filling, sealing, output of finished packaging machine.
1 This bag automatic packaging machines for automated production and packaging production directly instead of doing advanced equipment, to enable enterprises to achieve a packaging automation to improve productivity and dramatically reduce production costs.
(2) The aircraft with the material or bag contact parts are made of stainless steel or other materials processing with food hygiene requirements, to ensure food hygiene and safety, in line with food hygiene standards.
3 using the most stable cam mechanical transmission technology, equipment operation and stability, low failure rate, low energy consumption. While using imported PLC + touch screen HMI control systems, as well as high-end circuit structure, man-machine interface and other advanced technology, mechatronics, simple and convenient operation.
4 Self automatic detection: feedback and other functions in the production run if there is no bag or bags did not open the case, the detection device control no filling, no sealing, running real-time display, fault alarm and automatic shutdown. Save packaging materials and raw materials to ensure the packaging and raw materials contaminated site environment.
5 Bags wide adaptation: For single PE, PE composite material, CPP composite materials, aluminum foil and other materials made of prefabricated multilayer composite film bags.
6. Packing materials loss low: This machine is used the preformed bag, the bag pattern is perfect, good sealing quality, resulting in improved product quality.
7 Quick-change bag size: robotic device quick and easy adjustment.
8 Horizontal send bag: pouch can store more bags, bags for a lower quality requirements, sub-bags, bags on high
9 For good mobility material outlet installed centrifuge device to ensure accuracy, but for dusty material outlet suction device can be installed, siphoning counterattack dust.
|Bag Dimensions||W: 100 ~ 200mm L: 100 ~ 300mm|
|Filling range||10-500g ,10-2000g (need to replace the screw attachment)|
|Packing speed||10-50bag/min (specific speed is determined by the material itself and the fill weight determined)|
|Package weight||≤ 100g accuracy deviation ≤ ± 2% 100-500g deviation ≤ ± 1% ≥ 2000g deviation ≤ ± 0.5%|
|Power supply||three-phase 380V, 50/60Hz,|
|Overall dimensions||4600 × 2000 × 2430mm|
Receive your call for the organization of technical seminars to discuss customer equipment requirements. Provide you with a detailed " proposal", including 1, a sample of equipment; 2. The latest technology of related equipment at home and abroad, comparison of the advantages and disadvantages of related manufacturers' products; 3, GMP process design, plant layout diagram of water and electricity; 4, mechanical equipment Process design; 5, related product configuration, spare parts, packaging and after-sales service; 6, determine the equipment and sub-item quotation.
1, keep in touch with you, invite customers to visit the company, supervise production and assembly.
2. Prepare equipment specifications, file cards and tracking cards and other related software and accept your acceptance at any time.
3. Regularly report the progress of production to the customer.
After sales: (according to the international standard after-sales service standard operation)
• One-year warranty, life-long service, 24-hour after-sales service website, hotline and fax for your customers, domestic customers basically reach the designated location within 72 hours.
• Spare parts inventory is available for a long time, vulnerable, consumables and important accessories, to ensure that customers respond to the first time.
• Make regular visits to each customer once a year and record equipment records.
