| Product Name: | Plane Labeler | Catagory: | Labeling Machine |
|---|---|---|---|
| Usage: | Cigarette,bag,cards,toothpaste And Other Flat Boxes | Capacity: | 30-150 30-90 50-200 |
| Label Size: | 10-130 | Box Size: | (L)20-300×（W）20-200×(H)15-250 (L)20-300×（W）20-200×(H)0.3-2 |
| High Light: | industrial labeling machine,bottle sticker labeling machine |
||
Product Name

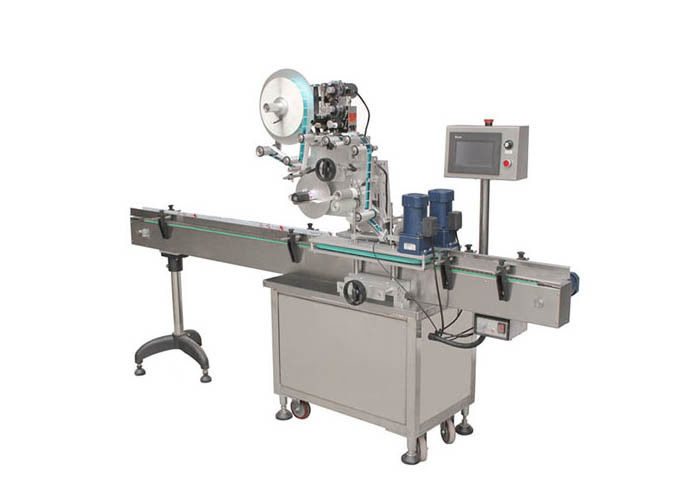

Plane Labeler For Flat Boxes Automatic Labeling Machine High Speed
DTB-J is suitable for flat or quadrate container widely such as cigarette,bag,cards&toothpaste box etc.The machine is economical and easy to operate,equipped with friendly HIM and PLC control system.The performance is stable with a level off especially at the top of container.The system easy changover based the requirement.
Key features:
● Labeling speed up to 150 pieces/minutes(according to the length of label)
● HIM&PLC Control System which is easy to control
● Simple Straight Forward Operator Controls
● On-screen trouble description
● Stainless Frame
● Open Frame design,easy to adjust and change the label
● Variable Speed with stepless motor
● Label Count Down(for pieces run of set number of labels)to Auto Shut Off
● Stamping Coding Device(Optional)
Specifications:
| Model | DTB-J | DTB-J-D | DTB-J-F |
| Capacity(b/m) | 30-150 | 30-90 | 50-200 |
| Size of Container(mm) | (L)20-300×(W)20-200×(H)15-250 | (L)20-300×(W)20-200×(H)0.3-2 | |
| With of label(mm) | 10-130 | ||
| Motor power(kw) | 1.5 | 3 | 2 |
Warranty:
One year warranty + lifetime maintenance + tailored + long-term tracking service is the principle of Shanghai Duxia Co., Ltd. .We’re equipped with a number of comprehensive technical and technical personnel on-site service for customers to solve technical problems. Our company provides a full range of installation and commissioning, maintenance, training, technical advice and other pre-sale and after-sale service. Advanced technology, reliable quality, reasonable prices and perfect after-sales service make you get the best products and services.
