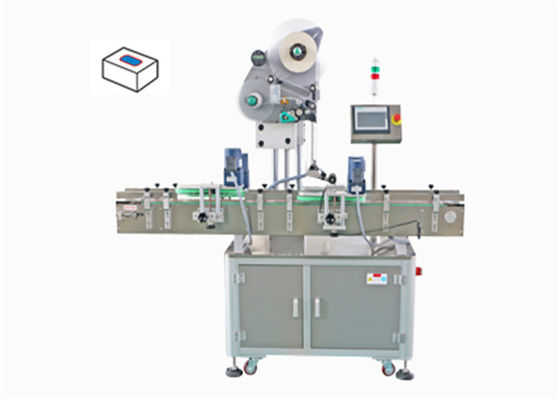

Upper Surface Automatic Labeling Machine Easy Operation For Bottle Cap / Bottom

Upper Surface Automatic Labeling Machine Easy Operation For Bottle Cap / Bottom
Upper Surface Automatic Labeling Machine Easy Operation For Bottle Cap / Bottom

Large Image :  Upper Surface Automatic Labeling Machine Easy Operation For Bottle Cap / Bottom

Product Details:
Place of Origin: China
Brand Name: TANGREN
Certification: ISO,SGS
Model Number: DX
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Delivery Time: 30 working days
Supply Ability: 10 per month
Detailed Product Description
Product Name: Upper Surface Labeling Machine Catagory: Labeling Machine
Usage: Bottoms、bottles Capacity: 50-200b/min
Label Size: H:10-300mm L:10-200mm Weight: 300kg
High Light:

industrial labeling machine

,

horizontal labeling machine

Product Name
Automatic Labeling Machine For Upper Surface Bottle Cap Bottle Bottom


Description

Basic purpose:
Widely used in various industries before or after forming the surface of the labeling needs, such as the bottle of wine industry bottle or bottom labeling, labeling of daily necessities in the lunch box and other industries in the carton before and after forming the plane labeling and so on , Can be achieved on the surface of the automatic labeling; can also be used for the pharmaceutical industry, a product packaging, two packaging, three packaging information on the logo associated with the relevant data to achieve intelligent traceability, improve product security anti-channeling Function of goods



Features:
The overall material of the device is stainless steel and aluminum alloy, the design of the mechanism is stable and easy to operate, the layout is beautiful and generous;
Using world-renowned electrical components, quality and stability;
Transparent label stickers are not blistering, sticker no folds;
Supporting agencies using a large sponge roller wheel so that the label more secure attachment;
Power clamping mechanism to ensure that the labeling position is fixed, greatly improving the labeling accuracy;



operating system:
Multi-functional man-machine interface, production count, parameter adjustment and other visual monitoring, with rich help function and fault display;
Automatic detection of label length and other functions;



Optional:
Optional hot stamping machine or Pen Maji flexible configuration;
Dedicated sensor for transparent and opaque labels;
Automatic dosing agencies and vacuum adsorption conveyor belt;
Increase the symmetry of the bottom of the labeling engine, can be achieved at the same time labeling requirements




Specifications

Model                                                                      PLM
Production (pieces / minute)              50-200 pieces / minute (with material and label size)
Labeling accuracy                                              ± 1.0 mm
Label type                                            sticker, transparent or opaque
The inner diameter of the label                            76 mm
Label outside diameter                                    350 mm (max)
Label size                                     length  10-300mm, height 10-200mm
Labeling object size diameter            length 60-380mm,width 60-350mm
Working pressure                                                 0.6Mpa
Power                                                  220VAC ± 10% 50Hz, 0.6Kw
Suitable ambient temperature     5-40 ℃, humidity 15-85% (non-condensing)
Weight (kg)                                                           300kg
Machine size                                        2200 (L) 800 (W) 1500 (H) mm

 Upper Surface Automatic Labeling Machine Easy Operation For Bottle Cap / Bottom 0Upper Surface Automatic Labeling Machine Easy Operation For Bottle Cap / Bottom 1Upper Surface Automatic Labeling Machine Easy Operation For Bottle Cap / Bottom 2Upper Surface Automatic Labeling Machine Easy Operation For Bottle Cap / Bottom 3





Advantage:

Advanced design and professional technology, precise manufacturing is our remarkable characteristics. Our company already pass quality management system, established integrity Quality Guarantee System, to insure the quality and performance of our products.

Our company devote to digesting and absorbing international advanced science of processing and automatic equipment. We have cooperated with company in Canada, Italy, Switzerland for long time. We have developed various advanced filling, packaging and conveying equipments and we have reached to professional level. Our automatic production system is widely used in food, beverage, dairy products, canned products, cosmetic, lube, medicine, chemistry, etc.
